GEOTECHNICAL INCLINOMETER lnclino-Robot-IRA-S

- Profile -

As a sourcing geotechnical inclinometer manufacturer, we introduce Inclino-Robot, a new generation of automated in-place inclinometer, applied in structural health monitoring, bridge monitoring, deformation monitoring, building monitoring, etc. It can completely replace manual inclinometers howerer matches the same accuracy of manual models with the following advantages:

- Automated Measurement

- Same accurancy as manual measurements

- Easy for repeated use

- 1 person for installation and operation

- Can be waterproof & immersive

Get a Quote>>>

Looking for more geotechnical instruments?

Refer to GeoSitter

INCLINOMETER WORKING PRINCIPLE

- Product -

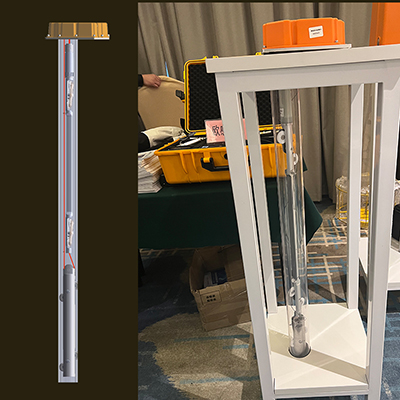

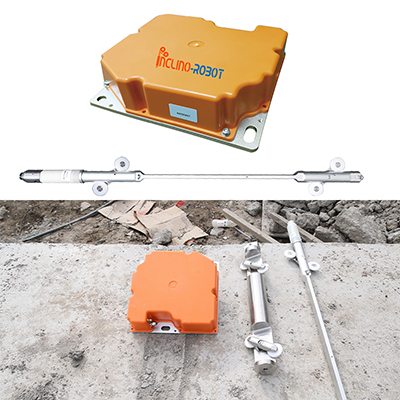

1、Comprised of a drive controller, inclinometer sensor, counterweight block, transmission antenna, and steel wire rope.

2、The steel wire rope forms a loop between the drive controller and the counterweight block, with the inclinometer sensor fixed on one side of the steel wire rope, driven to move up and down by the drive controller.

FEATURES OF INCLINO-ROBOT GEOTECHNICAL INCLINOMETERS

- Product -

Automated Measurement

1) Flexible settings of time and frequency; 2) Automatic data transmission & report generation;

3) Real-time remote monitoring

Accurate & Safe

1) Adheres to inclinometer principles, matching manual accuracy;

2) Eliminates human error and enhancing precision; 3) Increases safety of engineers by remote monitoring

Reusable for Multiple Depths

Reusable on-site with quick steel wire rope replacement for different depths,

no factory processing needed.

Simple & Convenient

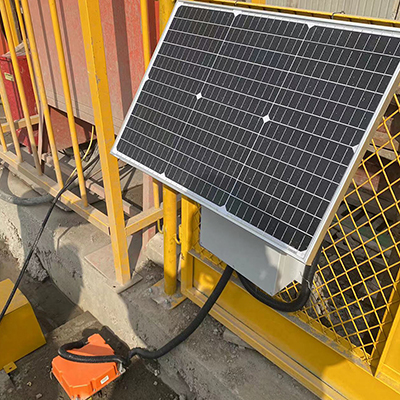

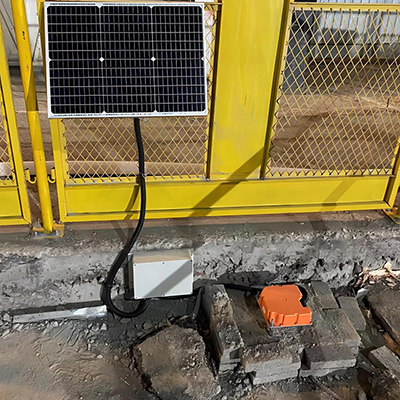

Compact design, solar power, No cable reel，Wireless communication simplify the installation and operation.

Immersion

Particularly for monitoring underwater or in wet environments.

Waterproof & immersive

Parameter

- Product -

Model	IRA-30S
Operating Temperature	-10~60℃
Measuring Range	±30°

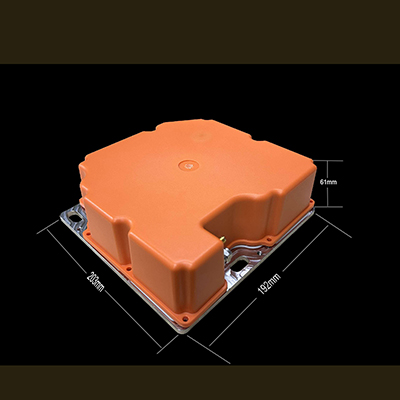

Size	203mm × 192mm × 61mm
Resolution	0.02mm/500mm
Instrument Weight	4kg
Accuracy	0.25mm/m \| 2.5mm/30m
Instrument Wheelbase	500mm
