GEOTECHNICAL INCLINOMETER lnclino-Robot-IRA

- Profile -

As a sourcing geotechnical inclinometer manufacturer, we introduce Inclino-Robot, a new generation of automated in-place inclinometer, applied in structural health monitoring, bridge monitoring, deformation monitoring, building monitoring, etc. It can completely replace manual inclinometers howerer matches the same accuracy of manual models with the following advantages:

- Automated Measurement

- Same accurancy as manual measurements

- Easy for repeated use

- 1 person for installation and operation

CONTACT US FOR FREE TRIAL>>>

Looking for more geotechnical monitoring instruments?
Refer to GeoSitter

INCLINOMETER WORKING PRINCIPLE

- Product -

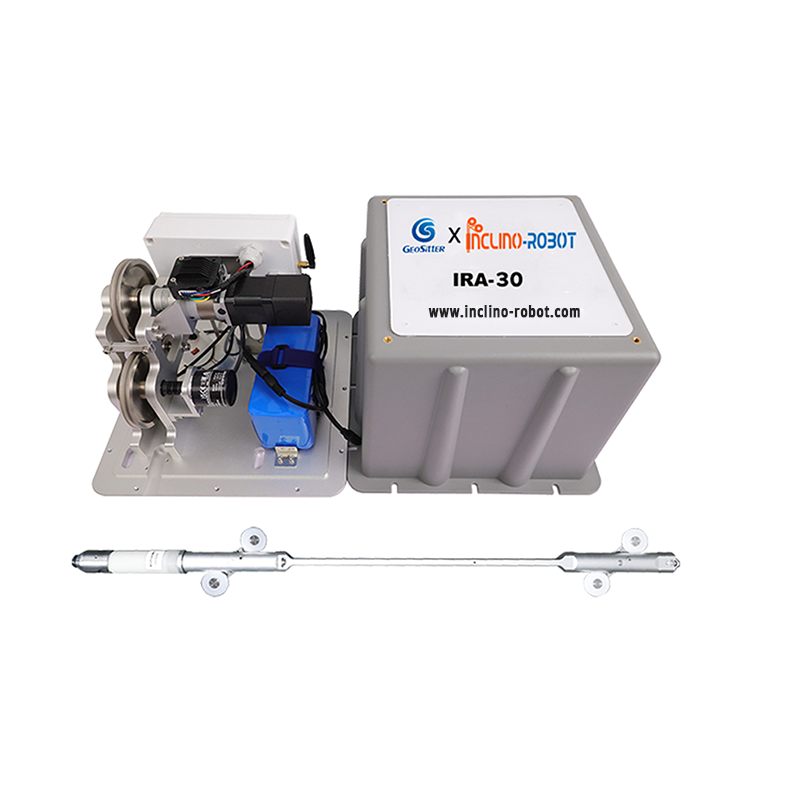

1、Comprised of a drive controller, inclinometer sensor, counterweight block, transmission antenna, and steel wire rope.

2、The steel wire rope forms a loop between the drive controller and the counterweight block, with the inclinometer sensor fixed on one side of the steel wire rope, driven to move up and down by the drive controller.

FEATURES OF INCLINO-ROBOT GEOTECHNICAL INCLINOMETERS

- Product -

Automated Measurement

1) Flexible settings of time and frequency; 2) Automatic data transmission & report generation;

3)Real-time remote monitoring

Accurate and Safe

1) Adheres to inclinometer principles, matching manual accuracy;

2) Eliminates human error and enhancing precision; 3) Increases safety of engineers by remote monitoring

Reusable for Multiple Depths

Reusable on-site with quick steel wire rope replacement for different depths,

no factory processing needed.

Simple & Convenient

Compact design, solar power, No cable reel，Wireless communication

simplify the installation and operation.

Parameter

- Product -

Specification
Exterior Parameters	Drive Controller	295275233mm
Exterior Parameters	Inclinometer Sensor	7934140mm
Performance Parameters	Measurement Range	0~±30°(Angle with the Vertical)
	System Accuracy	0.25mm/m
	Resolution	0.02mm/500mm
	Reading Position Error at Each Depth	±1mm
	Maximum Measurement Depth	100meters
	Sensor Waterproofing	2MPa
	Sensor Pulley Spacing	500mm
	Sensor Diameter	40mm
	Sensor Length	793mm
	Sensor Weight	0.7kg
	Wire Rope Material	Stainless steel
	Wire Rope Diameter	1.5mm
	Wire Rope Tensile Strength	1.5KN
	Wire Rope Weight	0.9kg/100m
	Counterweights	2.6kg
	Debugging Configuration Method	Phone APP
	Continuous Trouble-Free Operating Cycles	3000
	Suitable for External and Internal Diameter of Inclinometer Casing	external φ65mm internal φ54mm external φ70mm internal φ60mm
	Signal Transmission Method	4G lora
	Power Supply Method	Lithium Battery/Solar Energy/Wired Power Supply
	Working Temperature	﹣10°C~60°C
Product Description
Product name	Product model	Product description
Automatic Inclinometer	lRA-30	Measurement depth 0-30 meters 4G Signal Transmission
	lRA-45	Measurement depth 0-45 meters 4G Signal Transmission
	lRA-60	Measurement depth 0-60 meters 4G Signal Transmission
	lRA-100	Measurement depth 0-100 meters 4G Signal Transmission
