Hangzhou Convention and Exhibition Foundation Pit Project

Project Overview:

The 330kV power transmission substation is located at the northwest corner of the intersection of Wenyi Road. The substation has a rectangular layout, with the main structure located underground. The roof is planned to be covered with soil with a thickness of about 1m. It is a reinforced concrete structure with three floors underground and one floor above ground, with a burial depth of about 19m. The foundation pit support adopts the reinforced concrete pile + pre-stressed jet grouting anchor cable support type. The diameter of the pile is 1.0m, and the length of a single pile is about 33 meters.

Automated monitoring equipment

Device name：Inclino-Robot IRA

Model：IRA-45

Quantity：1 Sets

Hole Depth：32m

Starting Method：Starting from the orifice

Life Cycle：2023.06-2024.02

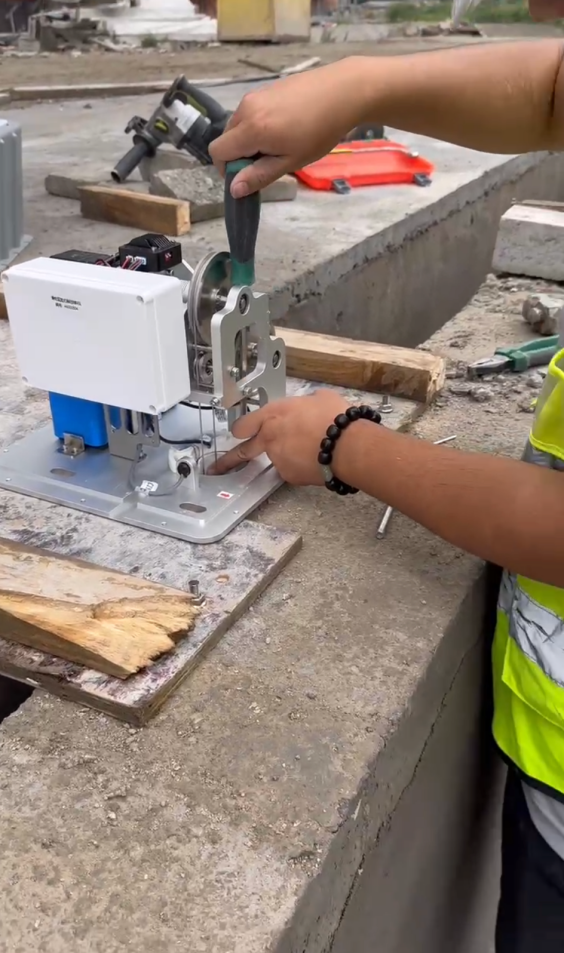

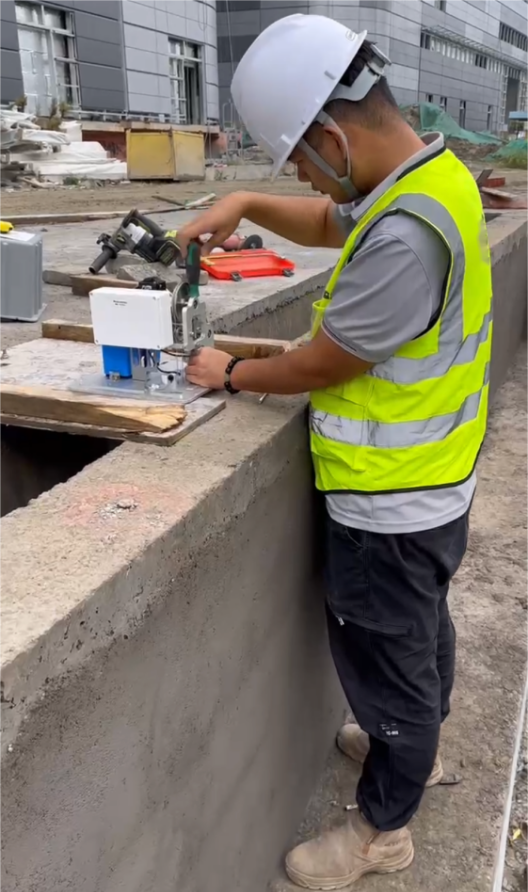

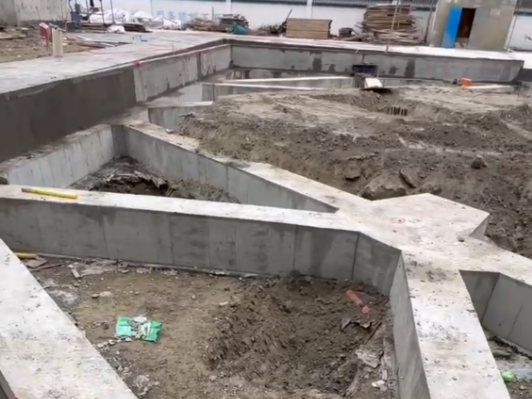

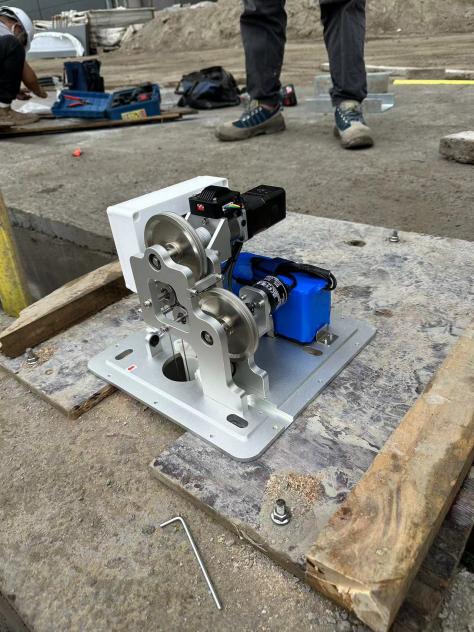

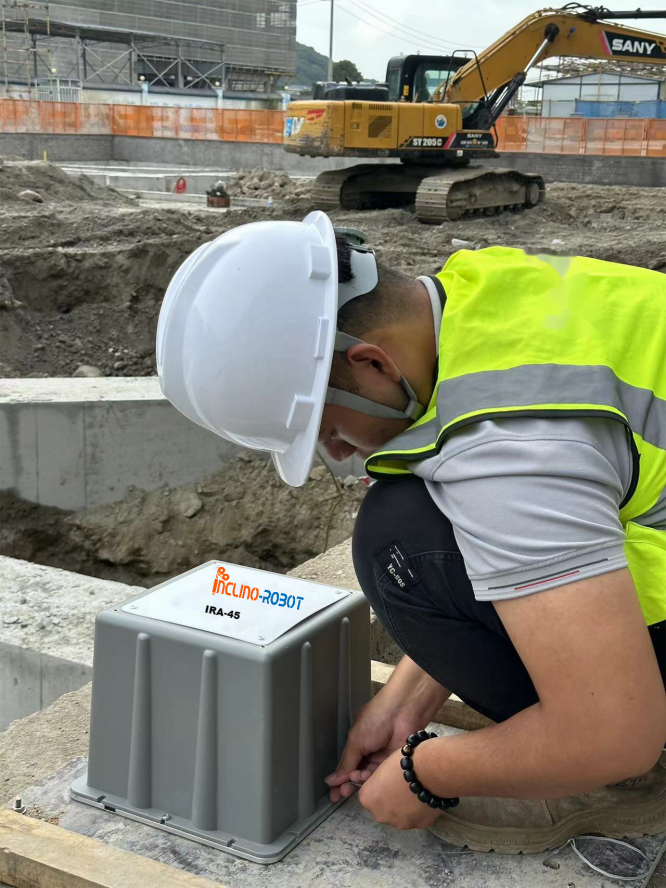

Installation Pictures

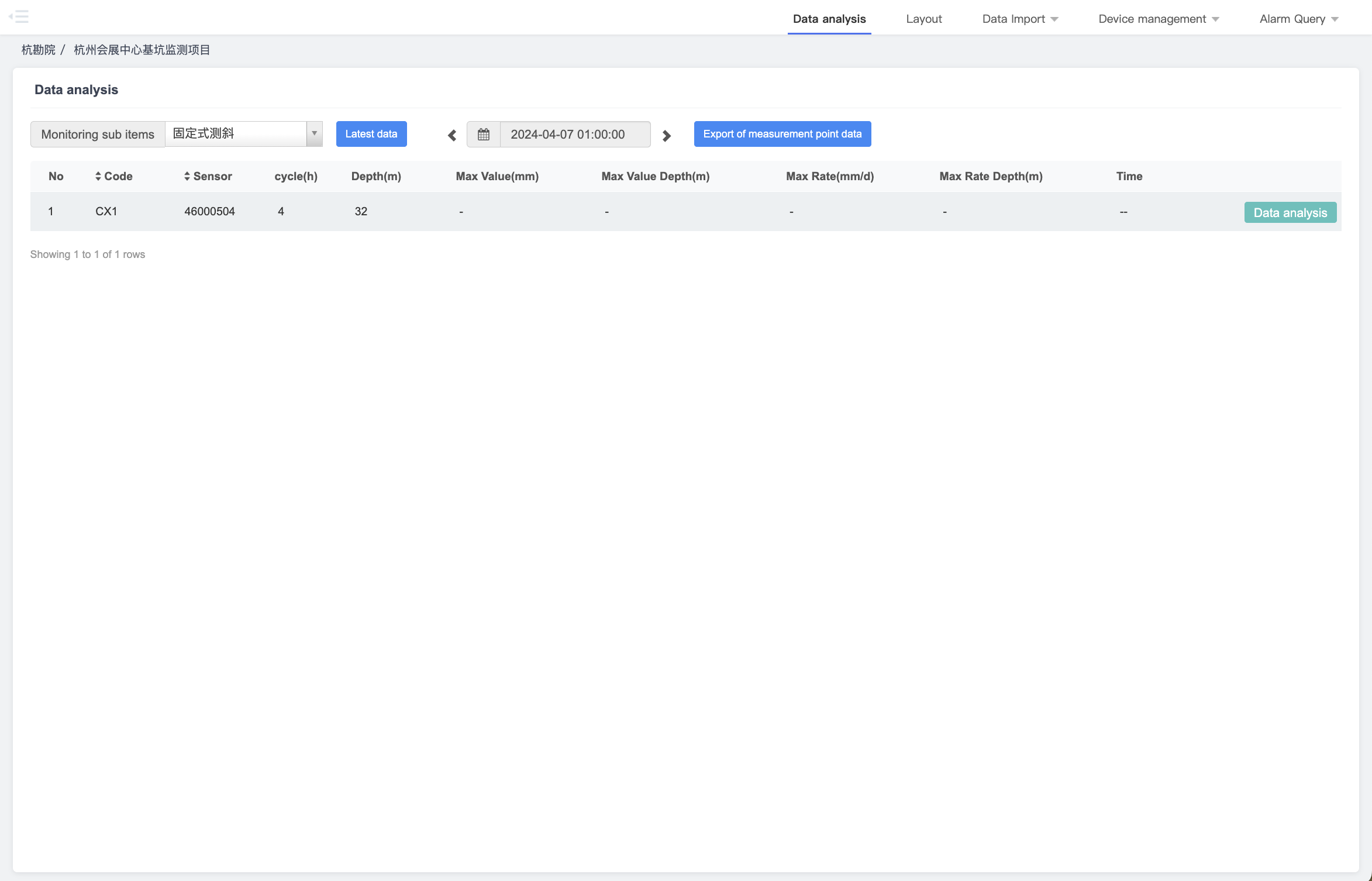

Data Display

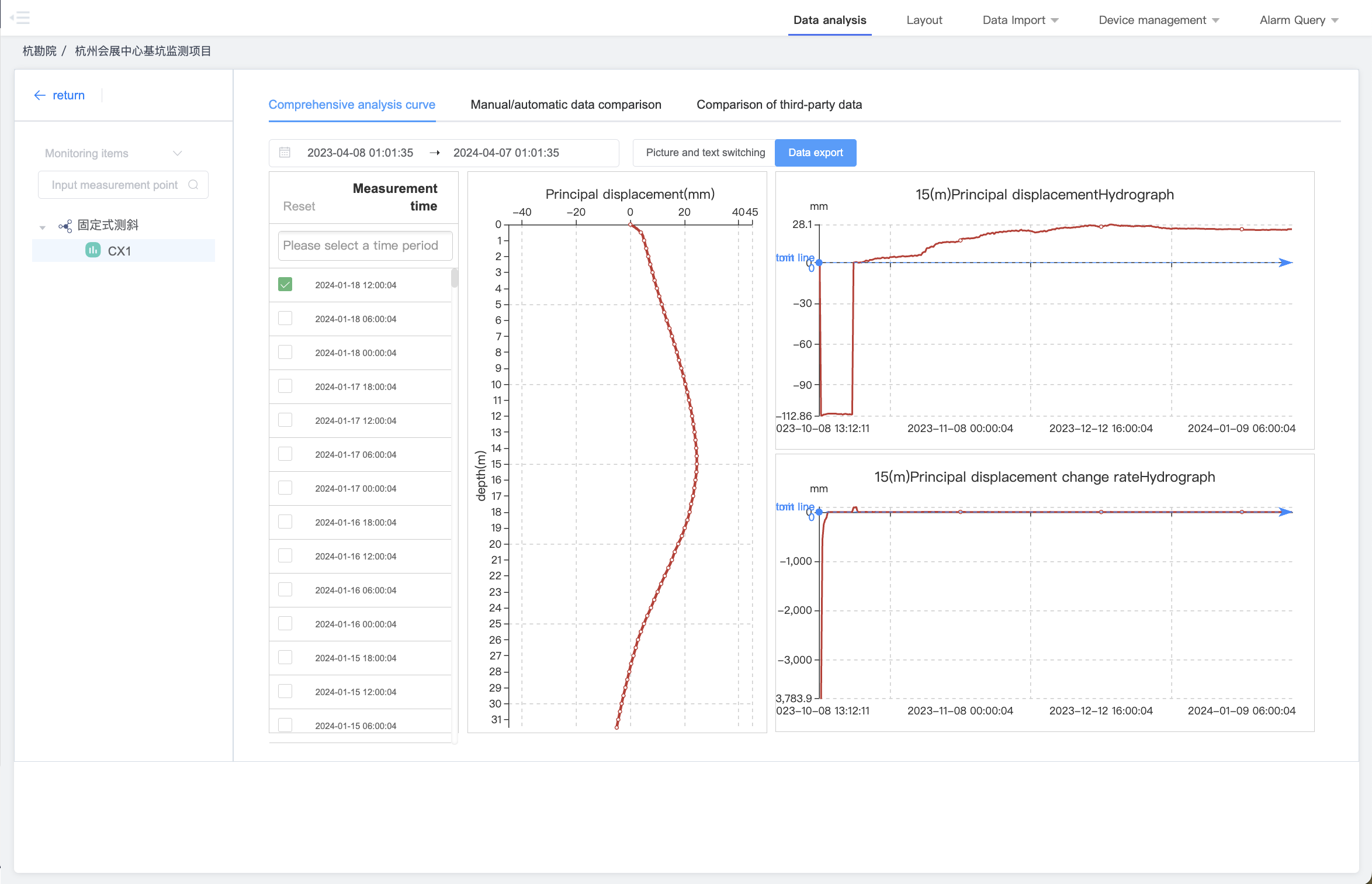

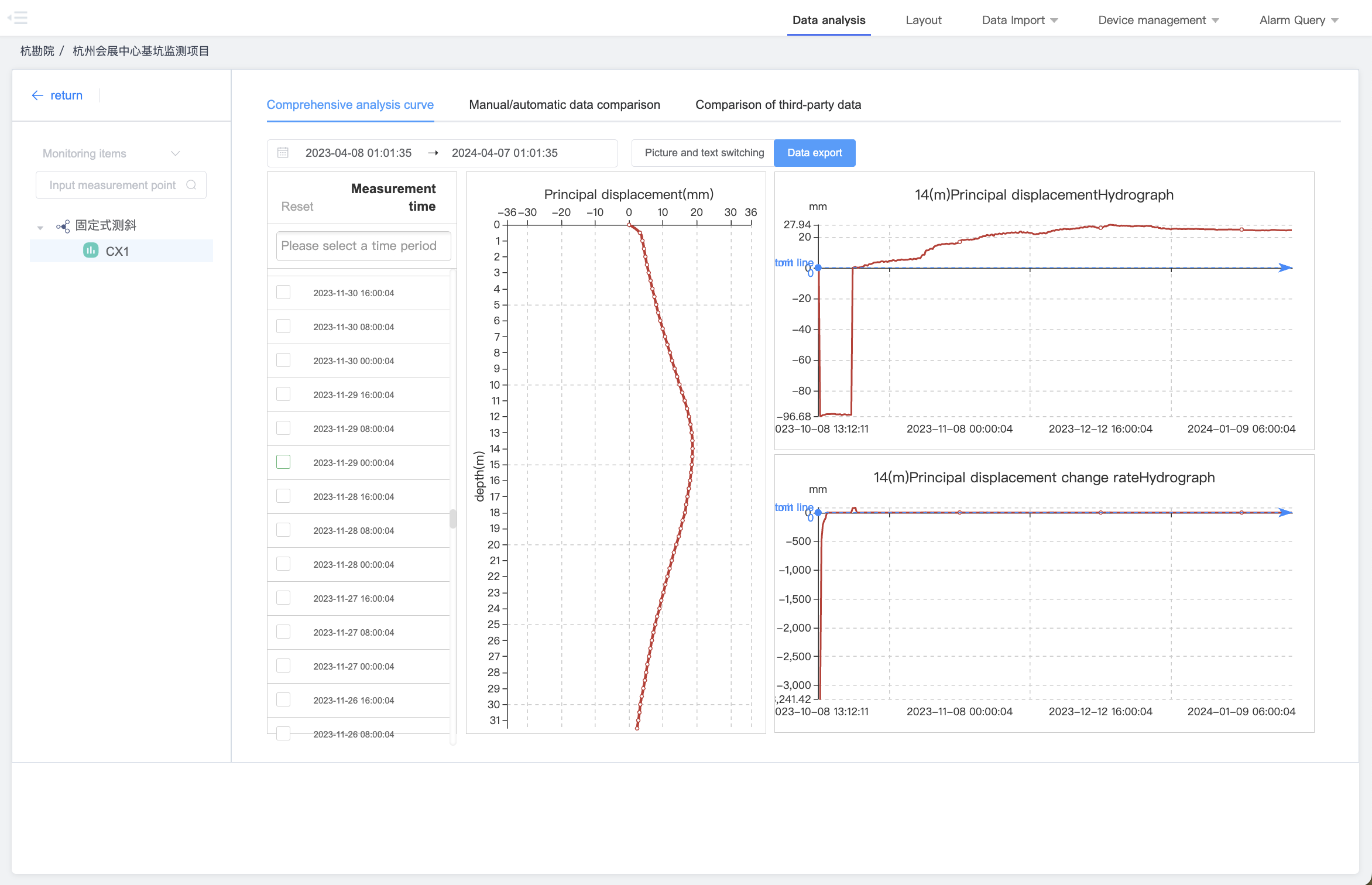

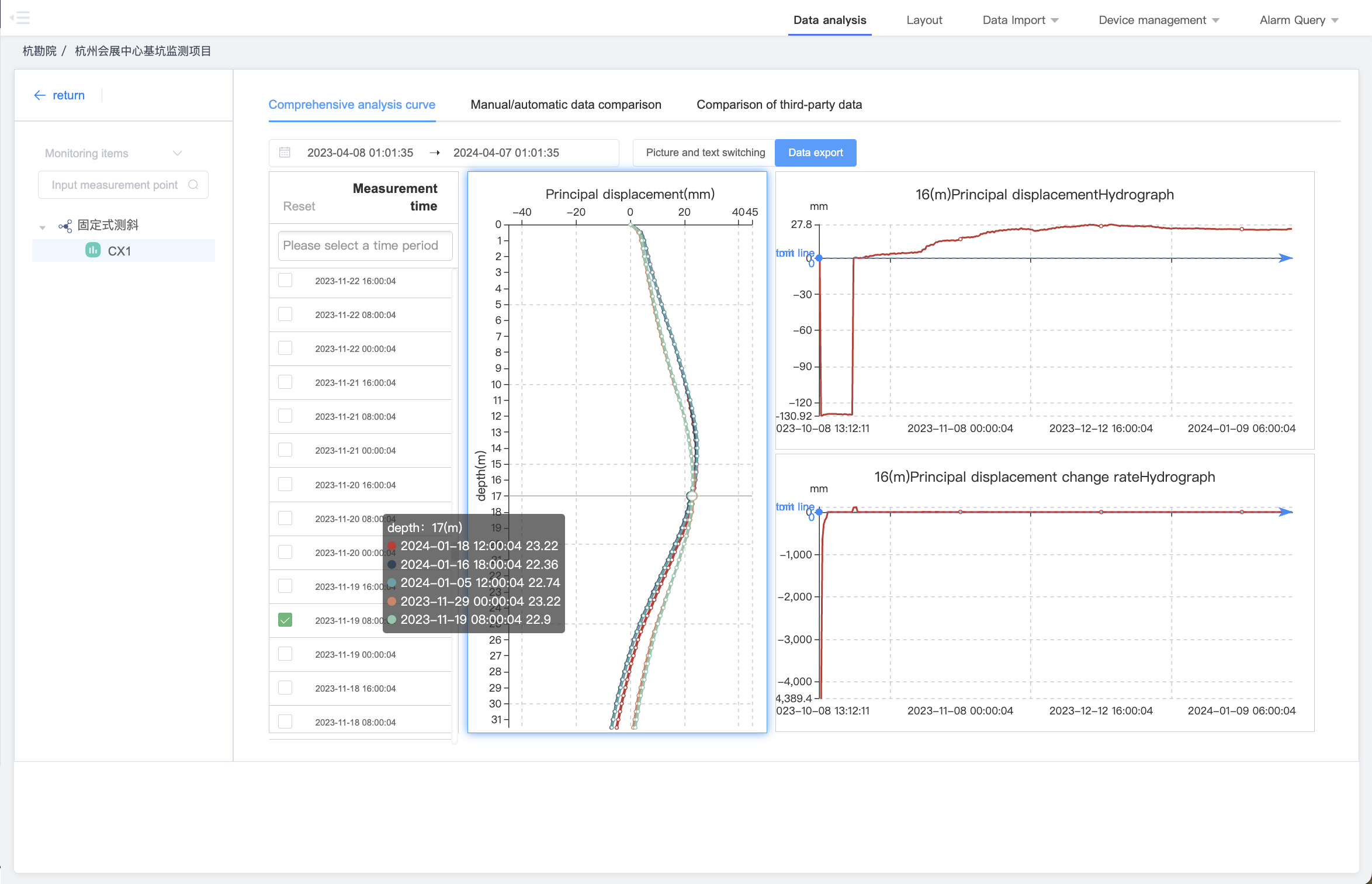

Monitoring data from the same measuring point in different time periods
